WOODWORKING: Mill Your Own Short Lumber the Simple Way

I milled this very high-quality little quartersawn board from a block of ash firewood that was too good to burn. Near perfect quartersawn growth rings orientation on the board is what you see.
  • Reading Time = 5 minutes
  • Video Watch Time = 4 minutes

It’s easy to look past the obvious fact that lumber comes from logs, but once you start thinking this way, interesting things can happen.  It’s surprisingly easy to mill short, small logs into furniture-grade boards in your workshop, all without special equipment. Dry this wood properly and you’re ready to joint, plane and cut material into parts for small projects. Besides saving money, this kind of micro milling gives access to species of wood you’ll never find for sale in lumberyards. You’ll also get complete control over grain orientation and the look of your wood. You can even treat construction-grade beams and planks from building supply outlets as your “logs” resawing them into smaller pieces for project work using some of these same techniques. I’ve been doing this for years.

How I Mill Short Lumber

I’ve had good results using two methods for milling lumber from small logs in my shop. The simplest involves a hydraulic wood splitter. You can also use an axe or splitting wedges to do the work. Clear, straight-grained, easily-split species are easy to cleave into board-like billets. Most firewood splitters handle blocks up to 24” long, so when you find a good log, cut blocks to this length, even if you’re making your firewood shorter.  You’ll find the best boards come from the middle of a log, where the wood is widest and the growth rings closest to perpendicular to the face of the boards. Split boards 1” to 2” thick, depending on how a particular piece of wood behaves and how thick you want your finished boards to be. Species like ash and oak split cleanly where no knots are present, so you can split them closer to final size. Wilder grained wood yields more irregular split boards that require extra material for jointing and planing into shape later.  I usually split bigger logs in two passes, each one 180º apart.

Bandsaw for Milling Lumber

Any bandsaw 14” or larger makes a great workshop saw mill for converting longer logs into boards. Depending on the diameter of your logs, you can saw them in the round, or pre-split logs into quarters before sawing. A sledge hammer driving a wood-splitting wedge works well for this kind of initial splitting. The bandsaw method handles logs that are longer than typical wood splitters, and the results are smoother and more refined. Maximum practical length of logs for bandsawing is about 36 to 48”, which is plenty for many small home workshop projects. Even urban communities produce big limbs or tree trunks that mill perfectly  on a bandsaw.

Drying DIY Lumber

Regardless of how you mill your micro lumber, drying involves the same process used with other kinds of rough lumber. No matter how long it’s been since your logs have been cut, the wood is still too wet for woodworking. That’s why you need to promote air circulation on all sides of every board, and a household fan really speeds progress. Stack your lumber with 1/2”-thick strips of scrap lumber between each piece, then direct air flow over the pile. If you can set things up in a heated space, drying time is surprisingly quick. I’ve had micro lumber drop from 25% moisture content to 10% (and ready to build with) in less than a month. Ash, pine and cedar can typically dry this fast without warping or splitting. Maple, oak and especially apple wood benefits from slower drying.

The video below shows how I select, dry and use wide construction-grade planks for building fine furniture.

Making Your Lumber True

Jointing and planing comes next, and it’s my favourite part of the process. That’s because the beauty of the wood starts to show through at this stage, though results take a little more time to achieve than with regular rough lumber. Irregular shapes mean more passes over the jointer and planer before you get to flat, precise material for projects.

One thing you’ll probably notice as you work is how smoothly your air-dried lumber planes, saws and chisels. The difference is especially striking with softwoods, and the reason is air drying. It’s a gentler process than the high temperature kiln drying applied to most commercial lumber, and the wood shows it. Air dried lumber simply behaves more pleasantly and predictably under any blade.

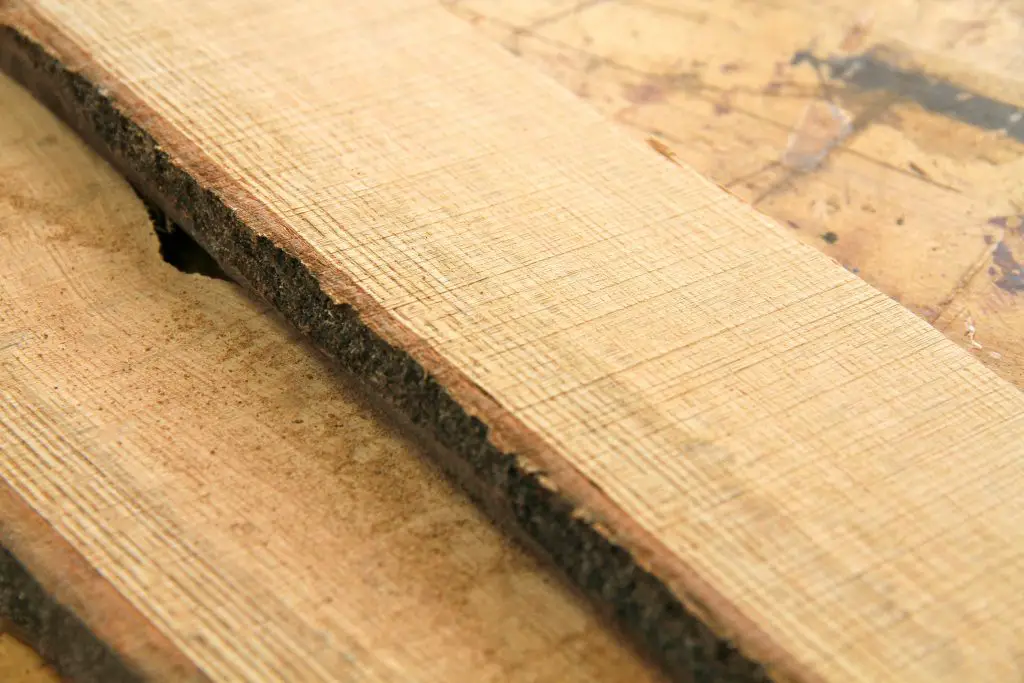

This quartersawn red oak lumber has “live edges”. This means the bark remains along at least one side of each board.

Control over grain direction is one of the hidden advantages of milling your own lumber on  a small scale. When you want lumber that’s as dimensionally stable as possible, cut your boards so growth rings are as close as possible to 90º with the face of the boards. This is called quartersawn or vertical grained lumber and it makes a big difference.

Vertical-grained wood has fine, straight and regular lines on the surface of the board, and it’s one of my favourite grain patterns. If you saw small logs so growth rings run parallel to the board face it’s called flatsawn. You’ll get a wilder, more pronounced grain pattern, which suits some projects perfectly. Just remember that flatsawn wood expands and contracts 200% to 300% more than vertical grained wood for a given change in moisture content.

Making your own rough lumber without a sawmill probably isn’t going to keep you supplied with wood for all your projects, but it’s still worth doing. I’ve always found that the more creativity you put into your projects, the more you get out.

Did you find this article useful? I hope so. Please consider helping me cover the cost of creating and publishing content like this. Click the “buy me a coffee” button below for a fast, safe and simple way to make a contribution. Thank you very much for helping to keep this website up and running.

– Steve Maxwell
