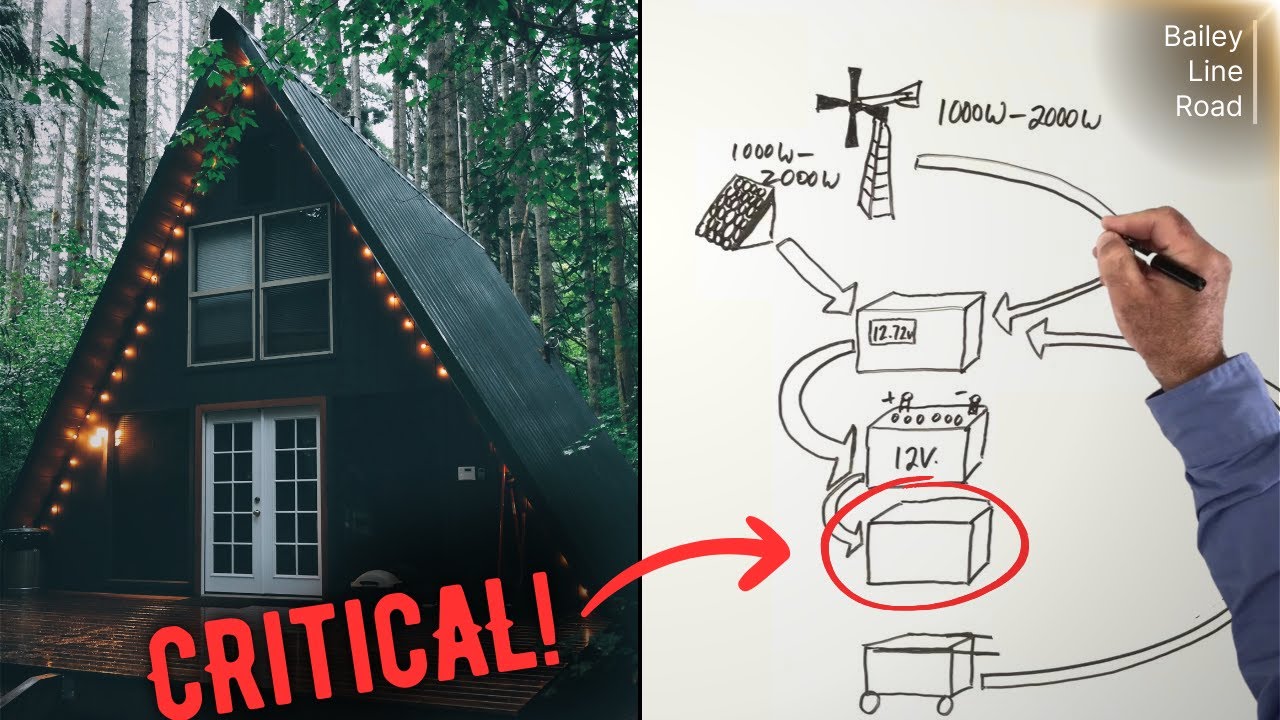

This video is all about the six main parts of the full featured renewable
0:05
off-grid energy system that I'm going to teach you how to build here. First of all
0:09
there's something to collect energy from the wind, there's something to collect
0:13
energy from the Sun, there's a charge controller, batteries, an inverter, and an
0:20
optional generator as well. On the wind side of things you've got a wind
0:26
turbine. It'll have a propeller, it might sit on a tower or on the top of a
0:31
building and it swivels around automatically to face the wind. In this
0:35
project here you're probably looking at a unit that puts out 1,000 to 2,000 watts
0:41
of power. Another part of the system is photovoltaic panels. These convert
0:47
sunlight directly into electricity with no moving parts and the panels for this
0:52
project would have a similar output to the wind turbine maybe 1,000 to 2,000
0:58
watts of power. The charge controller is a kind of low-key and hidden part of the
1:02
system but it's very important. It regulates the amount of energy delivered
1:06
to the batteries so that they're as charged as they can be without being overcharged. It takes power from the wind turbine and the photovoltaic panels and
1:14
the backup generator if you've got one and directs it all to the battery
1:18
Batteries are typically the heaviest and often the most expensive part of the
1:22
system. I recommend either lead acid or absorbed glass mat. One very important
1:27
thing is the need to size your bank of batteries so they don't get discharged
1:32
too much. The less you discharge batteries over the course of years the
1:36
longer they will last. All batteries produce what they call direct current
1:40
voltage, DC voltage, and that's not suitable for plug-in items so this is
1:45
where something called an inverter comes in. Typical output of inverters would be
1:49
120 volts AC although you can get inverters that produce 240 volts AC as
1:56
well. Whenever possible you will want to use direct current directly to save
2:00
inverter capacity. An optional part of the system is a fuel burning backup
2:05
generator to provide power if the wind and Sun side of the system can't keep up
2:10
In a setup like this the generator would feed power back into the charge
2:14
controller where it would direct power to the charging of the batteries
2:19
appropriately. The 120 or 240 volt AC output of the generator could also be
2:24
used directly for powering things. So you put these parts together and it lets you
2:29
convert wind and Sun to the most sustainable and renewable source of
2:34
power there is. I think it's a pretty good deal
