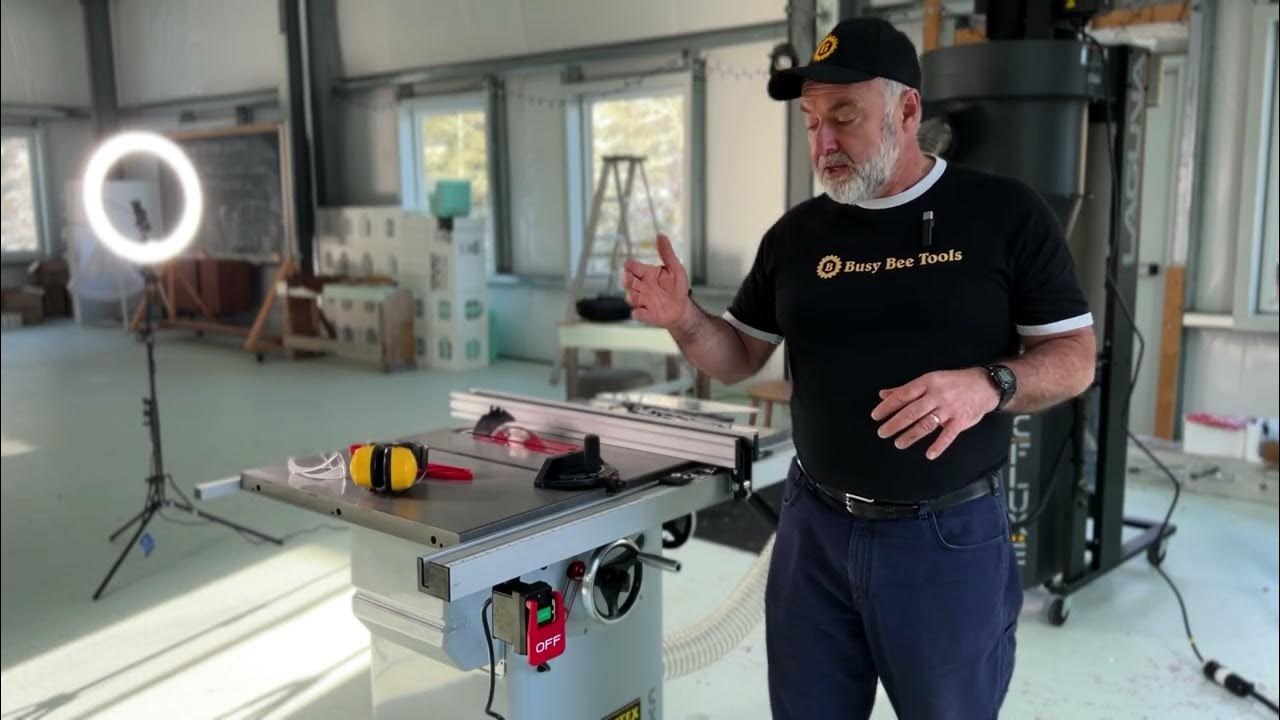

In this video, I want to give you a tour of basic table saw parts
0:05
And we'll start with the top. In this case, it's made of cast iron, which is a very common material for table saw tops
0:13
Smaller table saws, bench top styles, will have an aluminum top. And occasionally, you'll see a very cheap table saw with a pressed steel top
0:22
But cast iron is the material of choice. And you'll often see slots in table top
0:30
This is called a miter slot because a tool called a miter gauge fits in
0:35
And it gets that name because it can cut wood at different angles, presumably for miter joints
0:42
Another main part of any table saw is the fence. This slides back and forth and locks in position for doing straight cuts
0:52
Generally called rip cuts, although that's a bit of a misnomer, as I'll explain later
0:57
And of course, every table saw has a blade. I've got this saw unplugged so I can touch the blade
1:04
Never touch the blade when the saw is plugged in. This is a fine-tooth cross-cutting blade
1:10
And if you remove this part here, called the throat plate, you can see how the blade spins on a shaft
1:19
And here this shaft is called an arbor shaft. And there's a nut on there that holds the blade to the shaft
1:30
Every saw will also have an on-off switch. This one here is handy, nice to use
1:36
It's very easy to shut off because of the big red paddle
1:40
Cabinet saws like this often have a magnetic switch, which will automatically drop out and shut the power off and leave it off in an intermittent power failure
1:51
And it won't come back on unless you press the button again, the start button
1:55
Cheaper saws, bench top saws, just have a regular on-off switch. So it's a bit of a different style
2:01
Table saws also always have some mechanism for, in this case, raising and lowering the blade
2:09
And that's what you see here. I'm raising the blade now. That's as high as it goes
2:17
And then I'm lowering it as well. The central knob locks the control in position so it doesn't change
2:25
On the side, you'll see another wheel. And this is for controlling the angle of the blade
2:32
So normally, most cuts are done with the blade at 90 degrees to the table
2:37
But you can tilt them over as far as 45 degrees for bevel cutting
2:43
Some smaller bench top saws don't have a wheel for this. They have a lever
2:47
But it's the same idea. All modern table saws can have their blade raised and lowered and changed angle as well
2:55
Now, a couple of words about safety equipment here. I always use safety glasses, hearing protection
3:02
And this is a push stick. You'll see this in action later
3:06
For when you're cutting wood with the fence narrower than the width of your hand
3:12
That's a good rule of thumb. You'll want to use a push stick for that. There's also a blade guard which snaps into place
3:20
You'll be seeing that in action later. I've left it off now so you can see what's going on
3:25
One other feature to consider, and it wasn't always the case, but nowadays, almost all table saws are meant to take dust collection
3:34
This dust is a hassle. It's a health issue. This saw is connected to this dust collector with flex hose
3:42
I've left the back cover of this saw off. So I want to show you how it works
3:47
Come on around here. And you'll see that the entire cabinet is normally sealed
3:57
I've taken the cover off. But the dust will fall off the blade here and fall onto that sloped floor that's on the bottom
4:06
And at the bottom of the sloped floor is the vacuum outlet down inside
4:11
So most of the dust gets collected that way. You will find dust builds up in nooks and crannies
4:18
So regular cleaning maintenance is a good thing to do. But that's it in a nutshell
4:25
This is the parts of the table saw
