43 VIDEO HOW TO CUT PYRAMID TOPS*
1K views
Jan 24, 2024
43 VIDEO HOW TO CUT PYRAMID TOPS*
View Video Transcript
0:00
In this video I want to explain to you how to do something that I call a
0:04
pyramid top and it's a way of making the ends of posts and sometimes beams look a
0:11
whole lot nicer. So this is the mailbox that I built for my place here. I want
0:17
you to look at the top here. It's got a pyramid top right there and then there's
0:23
also one on the end here. If you look at this next photo this is the end of the
0:30
same arm. I've got a different mailbox on here now but you see how the pyramid
0:35
cuts come together and make the, in this case, the the horizontal member
0:42
horizontal 6x6 look pretty good. So here's how you can you can do this
0:47
First of all you need to start by making some angled cuts and that's what's going
0:53
on here. The exact angle, you might want to fool around with a little bit
1:00
15 degrees from square, 20 degrees from square. That's kind of what looks good
1:06
The challenge though is that an ordinary circular saw like this one can't cut
1:13
deep enough to make all four cuts come together properly on most timbers
1:19
This is a 6x6 that I'm working with now. You could get through on a 4x4 but
1:24
that's awfully small. Most of the post and beam work you might do for your deck
1:29
or other outdoor projects will be 6x6 and larger and so step one is just to
1:34
make four cuts like this. So beforehand I've marked a square line on all four
1:40
sides of this beam and that's what I follow as I make this cut. You can see
1:45
the cut doesn't go all the way down. So the next step is to continue that those
1:53
cuts with a handsaw to get us down past the point where all four cuts intersect
2:00
in one point. In this case it's going to be happening inside the beam and when
2:06
I've done all these four cuts this is what it looks like. So this top piece, the
2:12
scrap piece, just comes off and I can get rid of it and I'm left with the
2:17

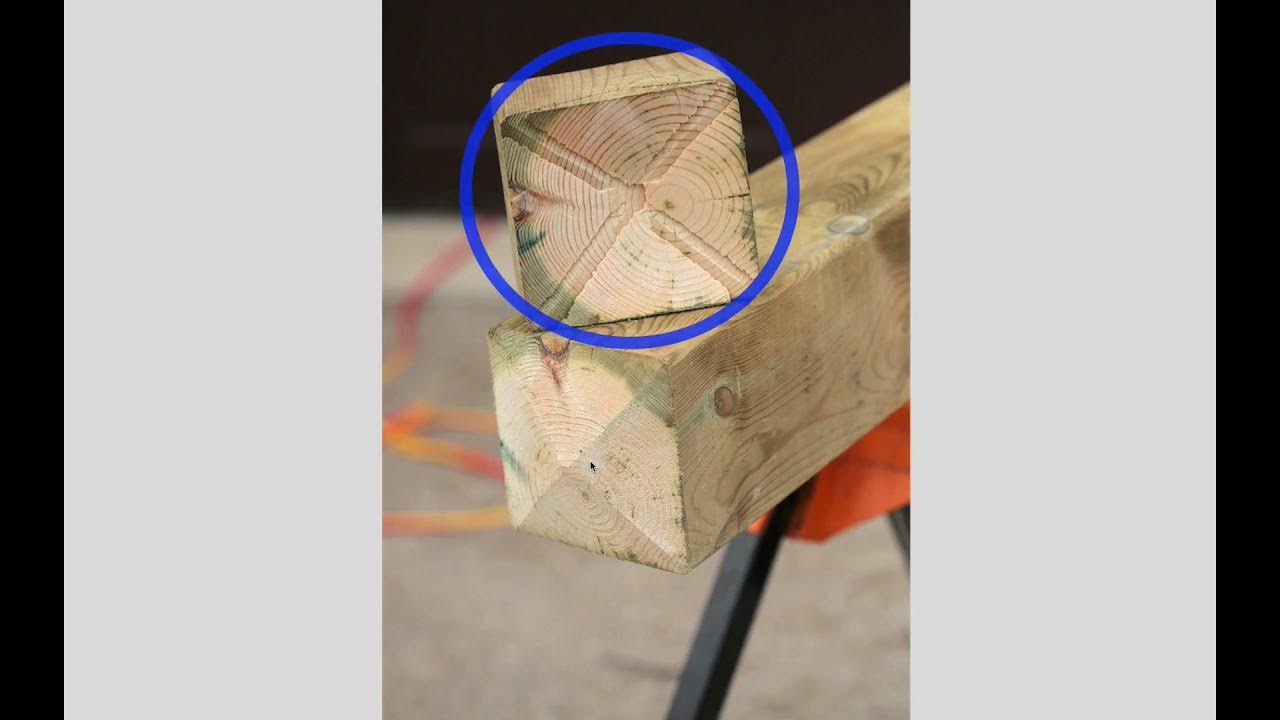

four facets that I want. Now you can't really tell in the photo here but these
2:24
cuts aren't going to be as good as they should be. I mean if you think about it
2:28
part of the cut maybe down to here on all four sides of the pyramid that
2:34
was done with a circular saw blade and then the rest of the cut was done with
2:39
a handsaw and usually what happens is there's a ridge of wood between the
2:44
circular saw cut and the handsaw cut and there's saw marks and it just doesn't
2:49
look all that great. We're close but we're not quite there yet and that's
2:54
where this last step comes in to use an 80 grit belt in a belt sander and then
3:01
just to sand each facet in turn. So you're making it smooth and then you're
3:07
also sanding them more or less depending on what's necessary to get them to come
3:15
together into a nice single point on the top. It's not difficult and the 80 grit
3:21
belt is aggressive enough that it cuts quite cleanly and you get a really nice
3:26
result ready for construction and finishing and anything else you want to do
