In this video I want to talk to you about smart thermostat controls and why
0:06
that matters for hydronic heating systems. So hydronic just means water based and that's the kind of thing that a solar heating system is going to be
0:17

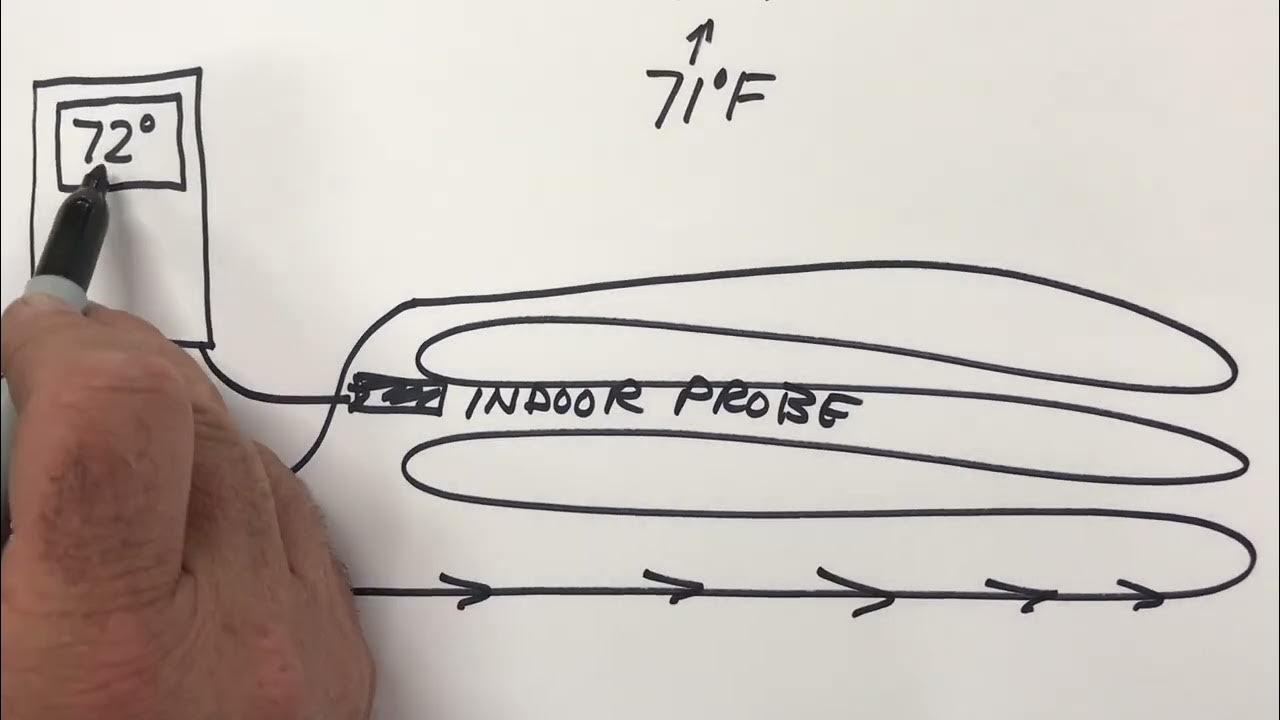

So imagine this is a thermostat and let's say I've set it at 72 degrees. Now this
0:24
thermostat, let's just imagine that it's that it's controlling a pump and the
0:31
pump is supplying hot water to a radiant in-floor heating network. So when the
0:41
thermostat detects that the room is colder than 72, let's say 71, it is going
0:50
to energize this pump which is going to send some hot water through the floor
0:57
network and warm up the room and then go back for heating in your solar heating
1:04
system. So technically as soon as that temperature rises to 72, then the
1:12
thermostat will shut off the pump. The problem with hydronic systems is that
1:17
there's still going to be a considerable amount of hot water sitting
1:22
in the floor and depending on the outside temperature and depending on how
1:26
fast your room loses heat, it can still continue to heat the room. So a normal
1:31
thermostat, all it can do is shut off the pump but it can't control how much extra
1:39
heating happens. So it's not unusual especially during the springtime when you've got a lot of solar energy coming in windows. That 72 degree setpoint, I
1:50
mean that could rise to 74, you know 76 degrees, something way hotter than the
1:58
setpoint. So a smart system starts with what you see here but it adds two things
2:05
First of all it adds an outdoor probe. That measures the outside temperature. It
2:14
also has an indoor probe. In this case that would be installed in the floor. So
2:21
what a smart thermostat system can do is make note of the outdoor temperature
2:27
make note of the floor temperature, and also note how much heat the whole room
2:36
loses. And what it'll do is it will anticipate the heat requirements of the
2:41
room and it comes to know how much this particular installation tends to
2:47
overshoot the setpoint temperature given an outdoor temperature. It's really quite sophisticated. So for instance after a few days of operation your smart
2:58
thermostat system might come to know that if I want a 72 degree room
3:03
temperature it's going to shut off the circulator pump at 70 degrees because it
3:09
knows that at a given outdoor temperature the system tends to overshoot the setpoint by two degrees. So in practice what you get is a much
3:19
smoother temperature performance in your room. In my experience when I've installed these systems they are accurate to within less than one degree
3:33
Fahrenheit. So sometimes a half a degree. So the the temperature is very very even
3:39
the comfort level is excellent and these smart systems aren't really any
3:44
more expensive than a regular dome thermostat. So let me take you to an
3:50
installation I've done and just show you what the equipment looks like after it's
3:55
installed. So this is a smart thermostat system or at least the the central brain
3:59
of it. It's made by a company called Techmar. They're a company that makes all
4:04
kinds of smart stuff like this. The thermostats around the house plug into
4:10
this and the outdoor temperature probe and the in-floor temperature probes also
4:18
plug into this and that's this is what decides the anticipation of the
4:25
temperature and how much a given room will overshoot, how much it has to shut
4:29
off before the set point in order that it doesn't overshoot the mark. And of
4:35
course today we're 82 degrees Fahrenheit so we're certainly not heating but that
4:39
number there comes from the outdoor temperature probe and it's part of the
4:45
equation that lets this thing be smart
