I've just finished installing the last little bit of a an interesting water
0:06

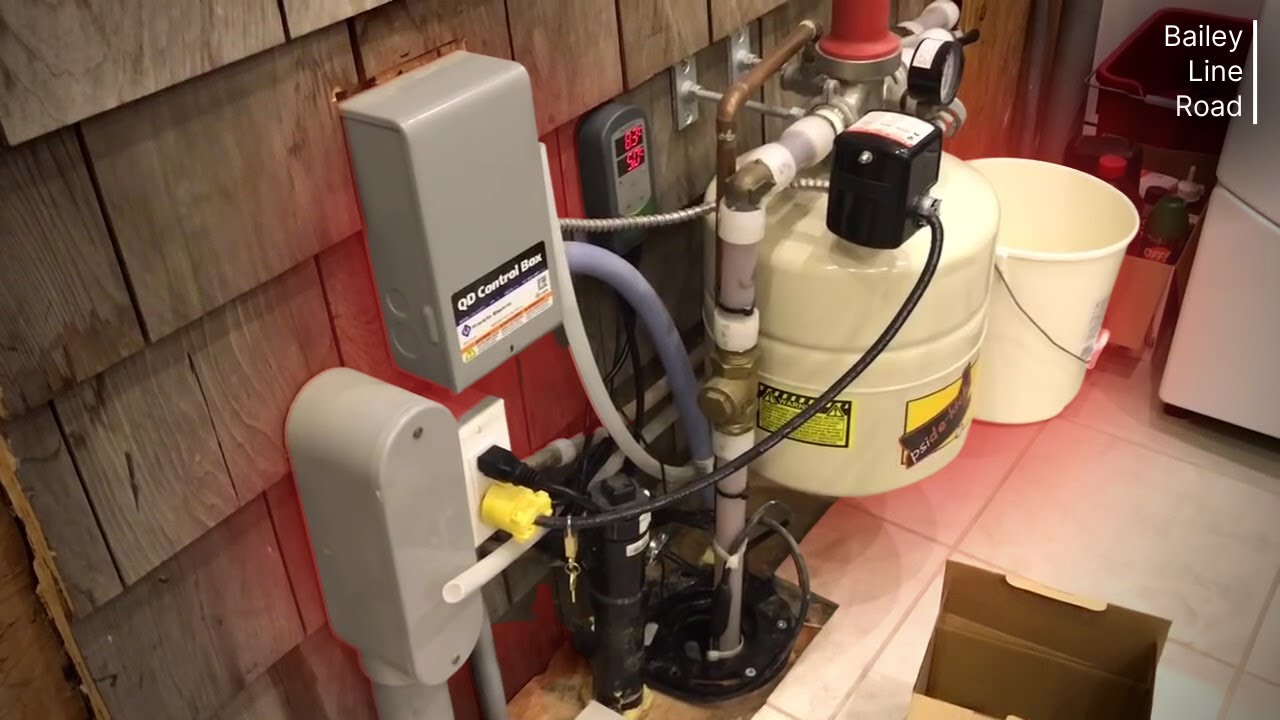

system here that I thought you might like to see. This is probably the most
0:12
compact water arrangement you can get. That tank there is a small tank just
0:19
about as small as a pressure tank as you can get. This red valve here is called a
0:26
cycle stop and I've made videos about that before. This particular situation
0:31
has the water line coming in from the floor and this cabin is raised on
0:36
pillars. So here's the water line here and it goes down into a four inch ABS
0:43
pipe. This is actually a toilet flange here and the water pipe goes down so
0:49
it's the outside of that ABS pipe is completely exposed and then it goes
0:53
underground under the soil such as it is which is about maybe 18 inches deep
0:59
or so all the way to the well. Now that's not enough of an arrangement to keep
1:04
this water line from freezing. So what we did when we installed the water line is
1:10
we ran two of these heating cables. We really only need one at a time
1:15
but you're not going to know if it's broken until it's February sometime and
1:20
your water line freezes up. So we installed two at once but actually
1:25
the heating cable doesn't have to run nearly as often as you think and that's
1:30
what this device here is for. It's made by a company called Inkbird. Those
1:37
numbers are pulsating just because of the video camera they don't actually pulsate but this unit plugs into a power supply here and it has another plug
1:50
connection here so the heating cable plugs into the the plug outlet that
1:56
comes from the Inkbird unit and the Inkbird unit does two things. First of
2:01
all it measures the current temperature so that's the temperature you see here
2:05
8.3 degrees Celsius. That's the temperature at a probe which which goes
2:12
down here. I've attached the probe to this length of pipe here just so I could
2:17
push it down to the optimum level. It's just a little probe on the end of a wire
2:22
and this temperature here is the temperature at which the Inkbird will
2:30
turn the power on. Now I've adjusted it ahead of time so that it's going to heat
2:35
two and a half degrees higher than the set temperature so it should kick off at
2:40
seven and a half degrees Celsius and then it won't kick on again until that
2:46
sensor detects a temperature that that drops below five degrees Celsius. I could
2:53
have probably adjusted it closer to the freezing point of zero but we'll just
2:59
see how it works. It's working fine now the power is not on and I don't want it
3:04
to be on but we'll monitor that temperature and see how it works and I
3:07
think it's gonna save a lot of power. It's gonna stop things from overheating
3:11
unnecessarily down there and I'll let you know if it works
