0:00
Hi, it's Steve Maxwell here, and in this fix-it, I'm going to show you how to replace damaged
0:04
European cabinet door hinges. It's the cabinet over here, and the hinge in this case is all metal
0:11
This is a good one, but lots of hinges are partially plastic. Sometimes this part's plastic, sometimes this part is, sometimes even the arm is
0:18
And these often break, and the cabinet door sags down and is a real pain
0:23
So when it comes time to change the hinge, you need to find a replacement of the same configuration
0:27
You can buy my hinges from Lee Valley Tools. There are lots of other options
0:32
Look for EuroHinge, and you'll see dozens of different designs. The most common design is the 95-degree overlay hinge, which you can see right here
0:41
If you take a closer look at that hinge, this is what it looks like. The good ones are all metal, and that's the kind you want to get for replacement
0:48

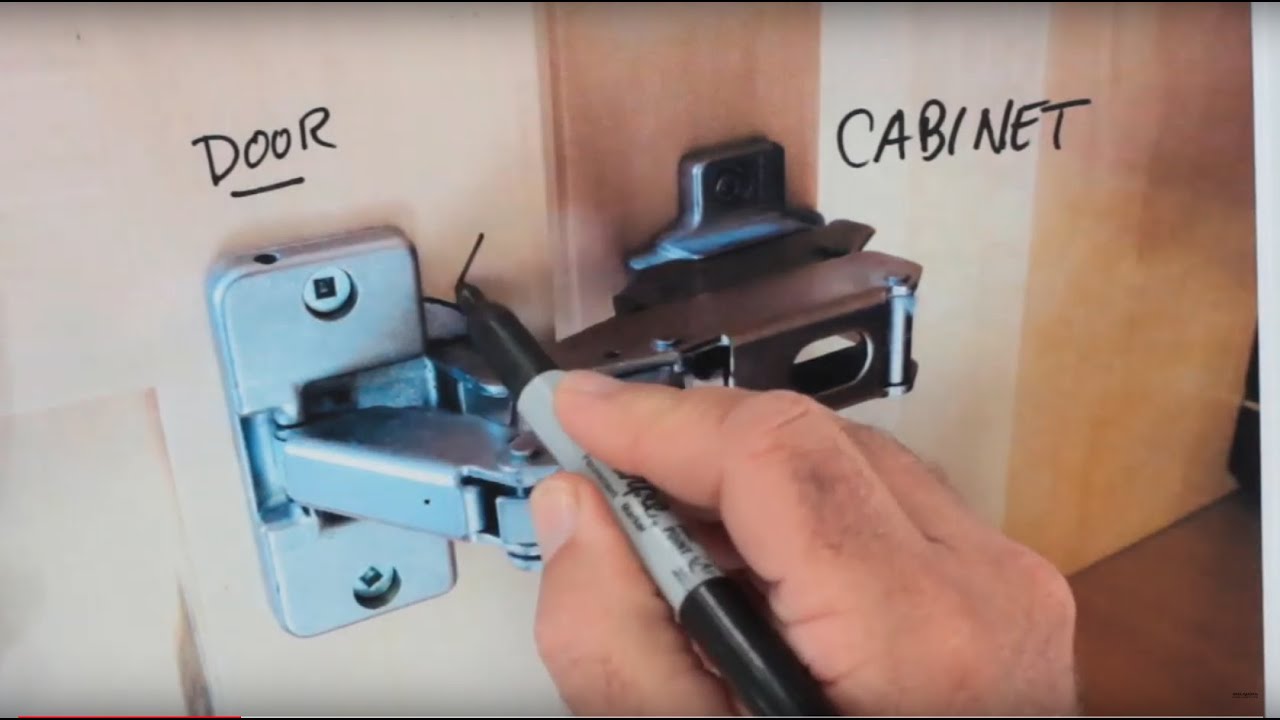

That's already pre-drilled into the door. And you can see how they work here
0:53
That's the cabinet, that's the side of the cabinet, and that's the door opening that is 95 degrees
0:58
With the new hinge in place, you'll find that it anchors in the same place
1:01
These are standard hinges around the world. One side, the door side, fits into a round pocket, and the hole spacing on the other
1:09
side is the same, too. These hinges always have adjustment screws. This one allows left-to-right movement of the door, so you can get it centered in the opening
1:18
And this screw allows the door to be moved in and out for better positioning
