0:00
Back in the fall of 2017, I installed an unusual rooftop de-icing system
0:07
I put it on Robert's place in the forest. And since then, people have been asking me how it's working
0:12
So, this is the time of the year when you really need rooftop de-icing
0:16

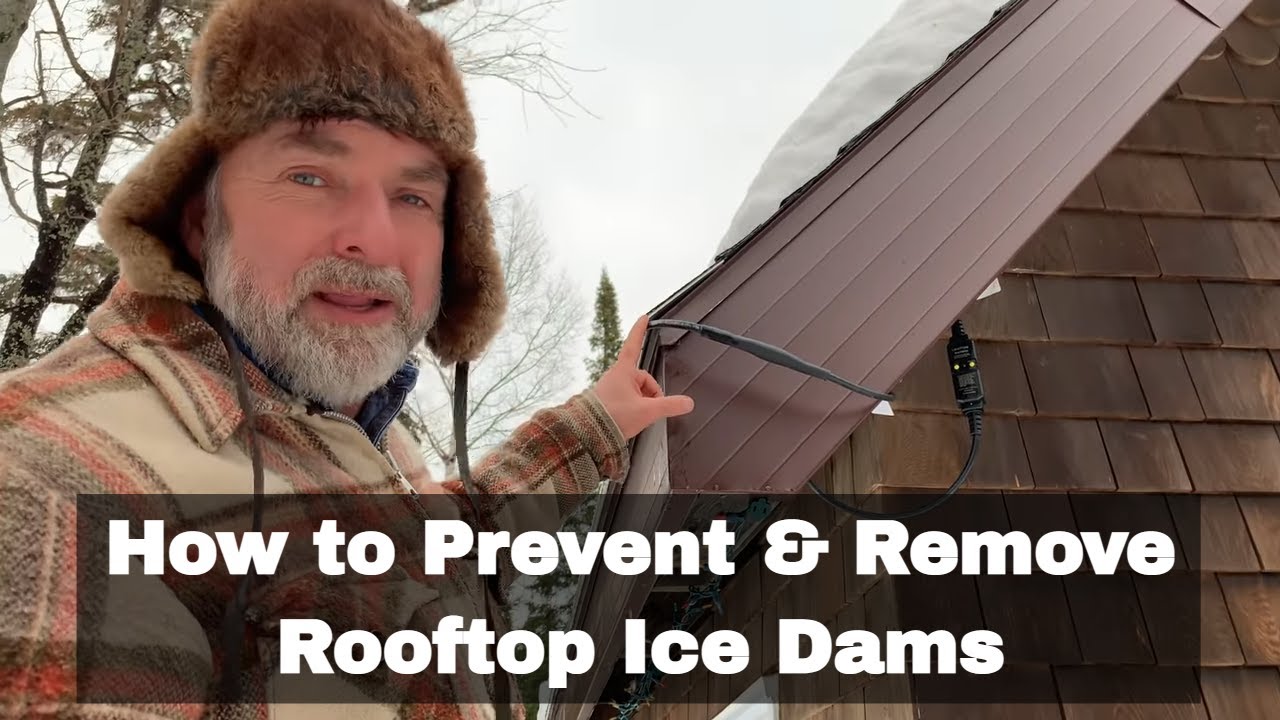

So, let's go take a look and see how it's performing. This aluminum edge that you see here is just the edge of the edge cutter system
0:25
Further up, about five inches up, the aluminum extends. And encapsulated in this section is a self-regulating electric heating cable
0:36
And it warms the aluminum, which transmits the heat up the roof
0:42
and completely melts off all of the ice that would normally be here
0:47
I mean, there still is some ice further up, but it's not causing any problems
0:52
Normally, without some sort of an Eves heating system, there'd be a great big berm of ice over here
1:00
and just completely encapsulating the fascia and adding a lot of weight and potential damage
1:08
And also, potentially, at least on some roofs, some leaking. So, you can see it in action here
1:15
And you can see how that heat is conducted up the roof and does its job
1:21
Here you can see the heating cable going into that aluminum extrusion
1:26
And this particular cable puts out a maximum of five watts per foot
1:32
So, it's not a whole lot of heat. When it's running, you can feel a little bit of warmth
1:37
but it's not like it makes your roof hot or anything like that. And it doesn't have to
1:41
You want it to use as little electricity as possible. So, that's what it does
1:45
This particular cable also is self-regulating in that it puts out more or less heat along its length, depending on its temperature
1:53
It's quite sophisticated. And the bottom line is to use as little electricity as possible
2:00
You can see how far up the extrusion goes here. We originally used construction adhesive
2:07
to secure the aluminum extrusion under the existing shingles, but that didn't hold reliably
2:12
So, we supplemented that with waterproof roofing screws driven down through the shingles, the extrusion, and into the underlying roof sheathing
2:20
This system also has a GFCI, ground fault circuit interrupter, built in at the beginning of the run
2:28
And that's just to give extra shock protection. Anything outside like this needs to be GFCI protected
2:34
What I like about the edge cutter is that it's clean looking, it's effective
2:38
and there aren't any rooftop cables on there. No matter what you use, there's going to be some ice and snow that slides off the roof sometimes
2:46
And that's the kind of thing that just rips the cables right off. But with this, there's nothing to tear off, and it looks great
2:52
It looks normal, too. Well, thanks for watching. I hope you found this tour useful
