Brad Elkins isn’t a contractor, and that’s precisely why his story is worth telling. He’s living proof that an ordinary, energetic homeowner can do excellent and technically complex renovations, all without professional help. Elkins gutted and rebuilt two side-by-side bathrooms in his own home, proving that care, best-practice techniques and old fashioned sweat equity can save cash and yield beautiful, durable results.

All major renovations begin with serious mess. Here you can see one side of the side-by-side bathrooms Brad Elkin gutted and rebuilt.

As in many modern homes, the two bathrooms in the Elkins residence were infected with rot and mildew. This is a surprisingly common issue and it’s why Brad wisely stripped the walls back to studs for a fresh start on both of them. The plastic tub surrounds had previously covered mold that developed on the drywall underneath because of leaks around the faucet and corners and fiberglass insulation in the ceiling was also black and grungy. As it turned out, even the stud frame wall between the two bathrooms was toast, requiring the old studs to be sawn out with a reciprocating saw, removed and replaced.

TECH TIP: It’s one thing to build a great new shower or tub, but you need to keep it clean, too. Click here for tips on how to clean glass shower doors.

Meeting the Bathroom Moisture Challenge

Bathrooms are unique because they’re small, steamy and stay wet for long periods of time. No other area of a home combines these conditions to quite the same extent. Trouble is, typical standards for bathroom construction don’t always protect against these realities. In fact, standard bathroom construction methods routinely fall short of keeping water in check. The reason this is tolerated is because water damage remains hidden, at least for a while. If there’s one thing that Elkins did exceptionally well, it was to create water resistance from the inside out. This is key to any kind of first-rate bathroom installation, and to make this happen, Elkins relied on three relatively new materials that offer unique advantages.



KERDI-BOARD forms the best basis for a waterproof tub-and-shower installation that I know of. It’s so effective that you could shower for years with no tiles in place and moisture would never leak into the wall cavity.

While it’s true that water resistant drywall is the standard material for bathrooms and tub surrounds, it isn’t as sufficient as it used to be. Changing cultural practices are the reason why. Forty years ago, Canadians took short showers one to three times each week. Nowadays, despite all our talk about conservation, we take longer, hotter and more frequent showers than ever. Water resistant drywall isn’t actually waterproof, and this is why it’s not always up to 21st century bathroom realities. In fact, it hardly ever is.

Mold-Proof Shower

Preventing moisture problems from the ground up is why Elkins used a structural foam product called KERDI-BOARD on wall studs, instead of moisture resistant drywall (which works poorly). It’s part of a three-part system that’ll keep the unseen structure dry and rot-free, no matter how often showers are taken. KERDI-BOARD is made by a company called Schluter especially for anchoring tiles, and Elkins used the 3/4”-thick version on wall studs. It cuts much like drywall. Slice through the skin on one side with a utility knife, snap the foam core with a sharp blow, then slice the second skin to complete the cut.

KERDI-BOARD is a new structural foam substrate for ceramic, porcelain and stone tiles. It cuts with a knife, yet is strong enough to function without any other structural support. Pieces join together with the same thinset mortar used to secure tiles.

KERDI-BOARD  fastens with stainless steel washers and screws driven into wall and ceiling studs. The grid pattern printed on the face makes it easy to cut the material square, and to steer level courses of tiles as they go up. Thicker versions of KERDI-BOARD are even strong enough to create partition walls on their own, no studs required. A simple metal edge cap makes 2”-thick KERDI-BOARD self supporting in applications where a shower partition wall extends out into a room from a main wall, for instance.



Taken together, the foam board, the waterproof cloth and the thinset mortar work together to make a shower and tub surround that’s completely waterproof before tiles go on.

Waterproof sheet materials are one thing, but they won’t do anything to help in corners and joints. This is where a second waterproofing product is essential and it’s why Elkins used a waterproofing fabric called KERDI. It’s designed to be fastened with the same kind of thinset mortar used to secure tiles, and it’s surprising stuff. Cut a piece of KERDI into a 12” diameter circle, snip a line from one edge of the circle all the way to the centre, then fold the whole thing into a cone. Even with nothing more than an overlapped seam, the cone holds water by repelling it. The same effect happens underneath tiles across joints and corners, too. You can see the cone test in action below. There really is nothing waterproofing the seam. The fabric simply repels water well enough that leaks don’t get past the unsealed seam.

KERDI cloth repels water by electro-static action, and that’s why water doesn’t even leak past the unsealed fabric seam in this cone holding water.

Elkins used KERDI in three specific places around his two tub enclosures:

  • inside corners and seams
  • outside corners and seams
  • over top of anchoring washers and screws

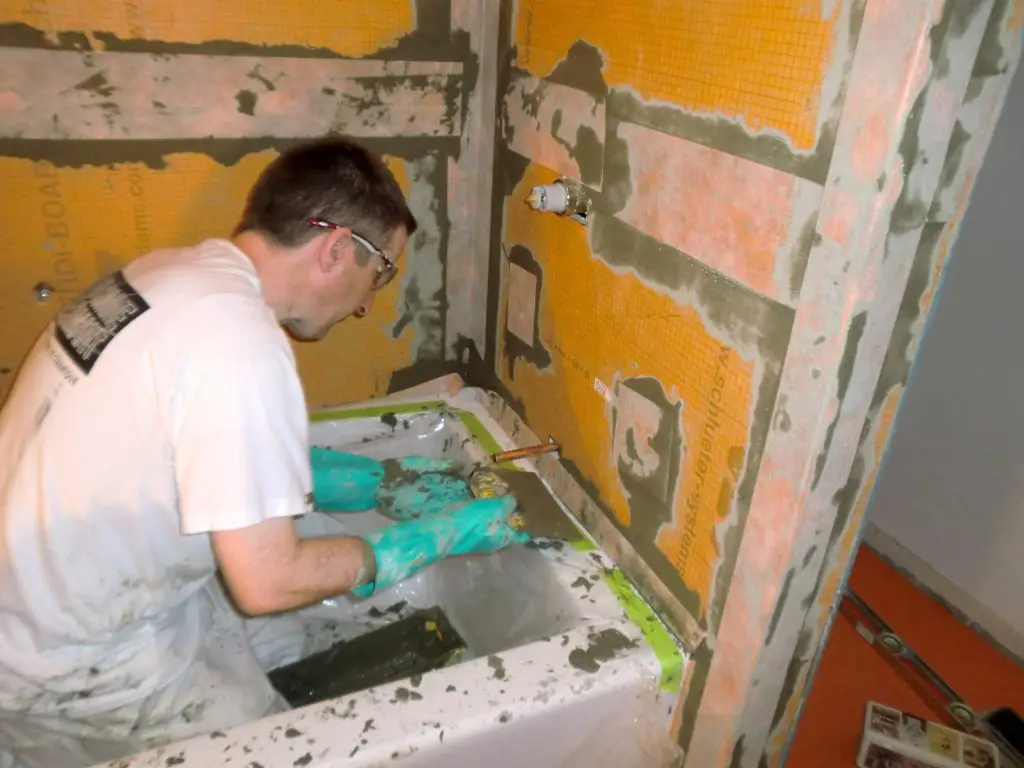

Trowel on some thinset, lay the fabric over top like you would with drywall tape, then trowel the fabric into the wet mortar. That’s it. When used with rubber seals over the pipes as they enter the tub area, you could use the shower for years without any tiles at all and moisture would never leak. No matter what foundation materials you use, tiling a tub area is messy work. That’s why it’s essential that you protect your new tub with plastic sheets before any work begins. Don’t skip this precaution.

Durable Tile

In the same way that the best tub surrounds are waterproof before the tiles go on walls and ceiling, the same standard applies to tiled floors. That’s because tiles aren’t always waterproof on their own. And even when they are, tile grout never is. All this is why Elkins opted for a dimpled uncoupling membrane applied on the wooden subfloor, before tiles went down. There are three reasons why.



Uncoupling membrane installed underneath floor tiles. Membranes like this allow small amounts of side-to-side movement of the tile relative to the subfloor, boosting tile and grout crack resistance a lot.

Contrary to popular belief, ceramic and porcelain tiles don’t usually crack because the floor underneath flexes. This can certainly cause trouble, but more often than not, tile installations fail because of something called differential expansion and contraction. Since tiles are made of different materials than the subfloor that supports them, tensions can build up between them with changes in temperature and moisture content. Even the tiniest difference here results in huge lateral forces that work to pop tiles off their mooring and loosen grout. Uncoupling membranes allow a tiny amount of side-to-side leeway between tiles and subfloor, neutralizing pressures and boosting reliability.

Since uncoupling membranes are made of heavy plastic, they’re also waterproof. Seams and corners will still leak, of course, but they can be waterproofed with more KERDI cloth and thinset. Best practice techniques also call for the cloth to be run three or four inches up the walls, to contain leaked water if it should ever get deep.

This is one of two showers that Brad rebuilt as part of his project. The installation will deliver many decades of trouble-free service, with no chance of hidden leaking.

Bathrooms should last longer than they do now. It makes financial sense and is ecologically responsible, but optimal durability is only going to happen if we build bathrooms differently than we typically do now. And perhaps the best news of all is that you don’t necessarily need to hire a professional to make it right.
