EDGE-GLUING SOLID WOOD: Three steps for success in the home workshop

Trees only grow so big, and that’s one reason gluing boards together edge-to-edge to make wider solid wood panels is a basic woodworking skill. Stability and appearance are the other benefits of edge gluing solid wood panels from narrower boards, and success depends on mastering the three steps I’ll show you here.

  • Reading Time =  6 1/2 minutes
  • Video Watch Time = 5 1/2 minutes
Edge gluing solid wood boards is a big part of woodworking. Here I have four boards coming together to make a wide panel.

Too many novice and intermediate woodworkers spend more time struggling with edge gluing than they should. I know because I ran into this problem when first starting out with wood back in the early 1980s. I remember a set of plans I bought to make a butler’s tray table, scratching my head at the inadequate instruction “glue 3/4″-thick wood together for the top”. That’s it, and it certainly wasn’t enough of an explanation for me at the time. This is where this article might be able to help you.

Edge-Gluing Step#1: Jointing Solid Wood

This is me jointing a piece of rough ash lumber in my shop. This is the second pass on the jointer. The first pass happened with the wide-face downwards to make it flat. More details in the video.

Are you new to woodworking? The techniques here are for more than just beginners, but I do have a popular woodworking course that’s especially for people who have never done woodworking before. Click below to check it out.

The quality of edge-glued boards is judged by how smooth and gap-free the joints are. This is where a process called jointing comes in. It involves milling board edges so they’re straight, square and able to come together less gap-free. Exceptionally well milled lumber is sometimes straight enough for immediate edge gluing as it comes from the store, but this is rare. Most woodworkers use a stationary machine called a jointer to create true edges. Watch the video at the bottom of this article for details on using a jointer effectively. You can also use a hand plane if your tool budget and workshop space don’t permit a jointer, though you’ll need to invest time to develop hand planing skills.

I’ve always found jointing before edge gluing works best as a trial and error process. Even with a properly tuned jointer, and lots of experience, neighbouring boards will still sometimes show small gaps when they come together edge-to-edge. Placing boards side-by-side on a flat surface highlights trouble before glue application, when it’s still easy to joint again. Gaps as wide as a couple of sheets of paper are acceptable along the middle of a joint (they’ll close up after clamping), but if you’ve got anything larger than this, use the jointer again. You’ll also want to avoid high spots in the middle of board joints. This leaves gaps near the ends, and these are more likely to open up after gluing than small gaps in the middle.

As you dry-fit boards without glue at this stage, also pay attention to the orientation of curved growth rings visible on board ends. Most boards show a cupped, concave growth ring pattern, oriented towards one board face or another. Some woodworkers like to orient cups of neighbouring boards in the same direction, but I’ve had better luck alternating the growth ring cups – one up, next one down. If one particular board face looks great, feel free to put it into view even if it puts the ring pattern out of sync. Click here to learn more about orienting growth rings properly. With all neighbouring boards fitting tightly, mark mating edges with an X on their faces, so you know the way the boards go together best when it comes time to apply glue.

It’s not necessary to install biscuits or dowels along board edges for strength, since modern wood glues form a bond that’s stronger than wood. Biscuits or dowels do help with board-to-board alignment, but I find installing them more trouble than it’s worth. In 30+ years of cabinetmaking I’ve used glued alone for edge gluing with no issues ever.

Edge-Gluing Step#2: Clamping and Glue-Up

Solid wood panels drying in the clamps after edge gluing. Note the small clamps on the ends to keep boards aligned up-and-down.

Now’s the time to dry-fit everything in clamps without glue as a final test under pressure. This offers two benefits. First, it prompts you to get out all the clamps you’ll need for the job, without having to rush around later adjusting more clamps while glue hardens. Second, dry-fitting under pressure lets you double check that any paper-thin gaps that were acceptable in step#1 will actually close up completely when you tighten things down.  You can’t wait until after the glue is applied to determine this because each joint will be hidden under a berm of glue squeeze out. This could easily be hiding an ugly gap that would only become obvious later, after sanding, when it’s too late to do anything about it.

Book Matching Basics

This thin panel was made with two pieces of ash cut from the same board, then glued together on their edges so the grain patterns mirror each other.

The most beautiful edge-glued boards combine two pieces of wood with grain patterns that are mirror images of each other along the joint line. This is called book matching, and though it’s most commonly used with veneers, it works just as well with solid boards, too. The trick involves creating the all-important mirror image grain patterns first, and to make this happen you’ll need to saw one piece of wood into two pieces on edge. This is called resawing, and though it’s usually done on a bandsaw, I’ve also had excellent results with a tablesaw, one edge at a time.

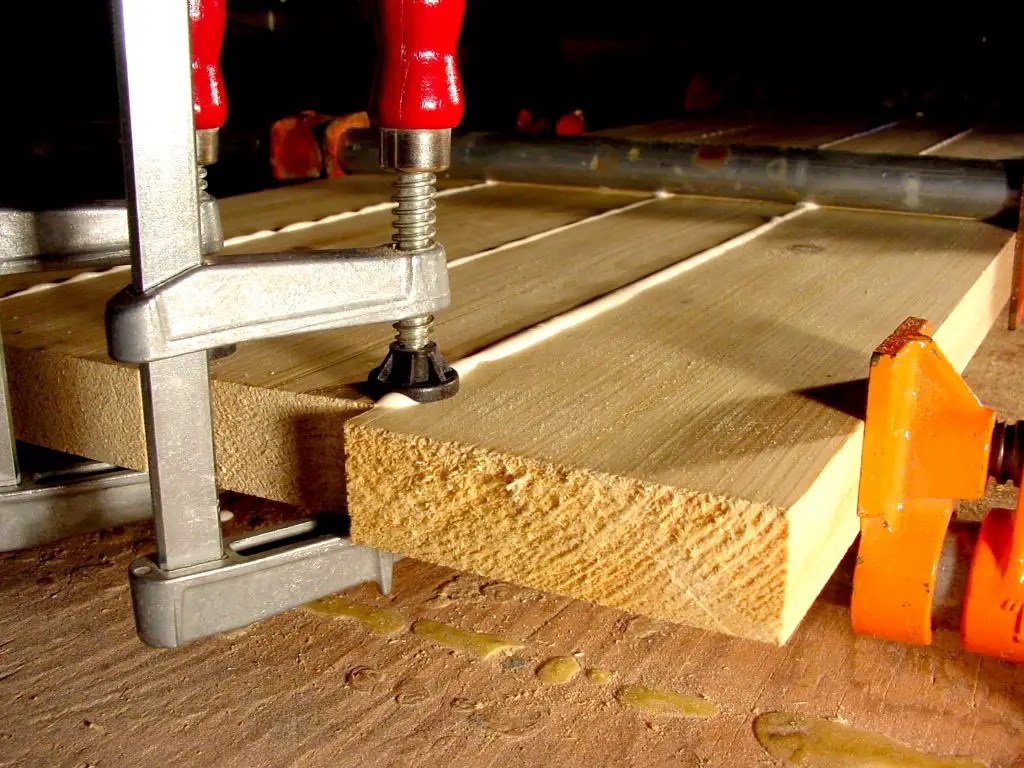

Clamps over the joint line between adjacent boards helps align them before the main clamps get tightened. This simple step saves lots of sanding time. Wait for the glue to get half-hard (about an hour), then scrape off the glue with a putty knife.

While you’re at it, apply small clamps over the joints at all board ends, as you can see above, to ensure each piece of wood aligns vertically with its neighbour. Boards almost always have at least a small amount of warping, and this forms steps along joints with neighbouring boards. But as long as the ends of all boards are held in alignment by small clamps on the ends, you can push any high boards down later by hand so they’re flush with their neighbours during final assembly. Go back to the jointer if any of the gaps don’t close fully under pressure.

When everything looks good, apply a moderate bead of glue to one side of each joint, bring the boards together by hand, then tighten up the end clamps. Push any high boards down so they’re flush with neighbours, and hold them that way while a helper torques down the main clamps with moderate pressure. There should be squeeze out along the entire length of each joint. This excess glue is easiest to scrape off when it’s half hard in an hour or so. Don’t wait until the squeeze out is fully hard.

Edge-Gluing Step#3: Smoothening the Panels

Here I am sanding a large wooden table top make of cherry boards. Trimming to length and width happens after this sanding step.

No matter how carefully you aligned boards during glue up, there’s always some mismatch along joints. Unless this is exceptionally small, start by sanding edge-glued panels across the grain using an 80-grit sanding belt to level up any mismatch. Next, use the same abrasive parallel to the grain to remove cross-grain scratches, then cut the laminated panel to final size before proceeding with finer and finer levels of sanding.

Master these techniques and you’ll be able to count on flawless edge-glued panels for every project you build. It’s one of those seemingly-difficult things that you’ll never forget how to do once you’ve mastered it.

VIDEO Tutorial

Watch the video below to see how I mill rough lumber so it’s flat, square and true. This is a necessary step when working with solid wood.
