CLOTHES DRYER VENTS: How To Do Them Better

• Reading time = 5 minutes
• Video watch time = 1 minute

Clothes dryer vents have got to be one of the last things builders consider when they’re putting a house together, and it shows. Take a look behind just about any dryer and you’ll see what I mean. Crumpled flexible ducting made of what looks like recycled vinyl bathing caps or TV dinner trays struggle to survive and stay open as it snakes its way towards an ill-located exit hole, crushed against the back of a dryer pushed too close to the wall. But thankfully, the hardware necessary to complete a safe, first-rate, crumple-proof dryer vent hookup now exists. And when it comes to dryer venting, it’s about time we did things better.

Doing Dryer Vents Better

Considering the stakes involved, the topic of dryer ventilation connections deserves a lot more attention than it gets. Poor quality dryer connections waste energy, they slow drying time, and they can admit enough cold air to encase the indoor portion of the vent in frozen condensation during ultra-cold weather, if you get it where you live. Bad dryer vents can even set your house on fire by trapping and holding lint.

More than 15,000 dryer fires occur each year across North America, and many of these can be traced back to crumpled vent pipes that trap tinder-dry lint. And in the case of gas-fired dryers, bad vents even pose the hazard of carbon monoxide making its way into your home. Both ends of most dryer vents usually beg for an upgrade, and I’ve discovered several pieces of hardware that make safety and quality easier to achieve. One piece gets worked into the wall, and you can see it below.

The first piece of hardware I like is something called the Dryer Box (561-743-8696). It’s a stamped steel tray that creates a recess within the wall behind your dryer. Smooth, low-friction steel dryer ducting ends inside the box, creating a safe zone where the flexible ducting that connects to your dryer remains protected. You can even push your dryer right up against the wall and the flexible ducting remains unharmed. The product is made in the U.S., and widely available in other countries. Dryer Box is shallow enough that it can be recessed into a 2×6 wall, but as I said don’t install it in an exterior wall in a cold climate. There’s simply not enough room behind the box for insulation.

Replaceable Dryer Pipe

Everything needs replacing eventually, and this includes dryer vent pipes. That’s why I never install just one pipe when I’m installing a dryer vent through an exterior wall. Two pipes are better, as you can see above. With an outer pipe installed permanently in the wall, an easy-to-replace inner pipe offers a simple option for replacement later, if needed.

Easier Dryer Disconnect

Have you ever noticed how much of a pain it can be pulling your dryer away from the wall for cleaning or repairs, only to find that you can’t move the machine out far enough because it’s connected to the vent? This is where the MagVent dryer vent connector can help. I have one installed at my place, and my son Robert has one at his, too. They work great. One half of the MagVent gets fastened to the vent coming out of the dryer, and the other half gets fastened to the end of the vent duct. The two halves come together and stay together with magnetic attraction, but it’s easy to pull them apart for a quick disconnection of the duct from the dryer when needed. You can see the MagVent below that’s installed at our place. I got mine at Lee Valley Tools.

Better Outdoor Dryer Vent

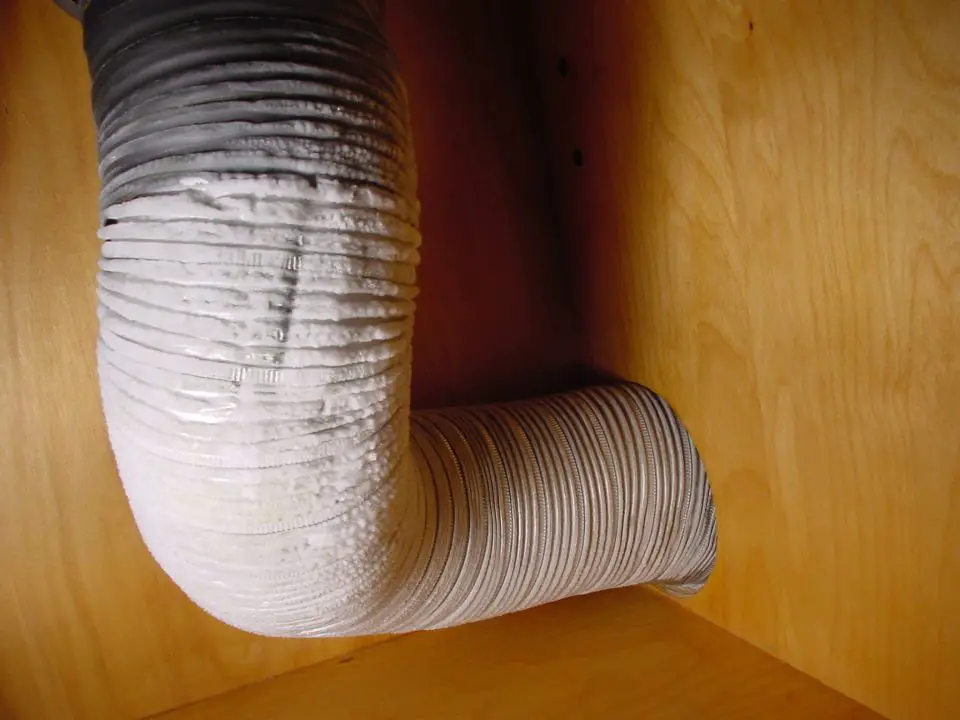

Cold winters offer another reason to take a second look at the other side of your dryer vent, the place where the duct ends outdoors. This is where you’ll probably find a plastic vent flap that’s supposed to stop cold air from back-drafting into your dryer and your house. But have you ever seen a plastic flap vent that actually worked? I haven’t. Just open up the dryer on a cold day and see for yourself. It’s typically cold enough in there to safely store milk and meat between loads of laundry. This is because the slightest breeze flips the lightweight flap up, letting enough cold air indoors to create significant ice build-up on the outside of many dryer vent pipes as it makes its way to your machine. Besides admitting cold air into your home, frost can build up on the outside of the dryer vent, causing drips and sogginess when the frost melts. The dryer vent below is at my place before I discovered a once-and-for-all solution to the frost problem.

Since 2009 I’ve been using  a Canadian invention called Ecovent (Broan model#EV100). It solves the silly dryer flap problem once and for all. The heart of the Ecovent is a plastic hood that’s filled with rigid foam insulation that surrounds a loose foam sealing ball. Gravity and wind both work to seal the ball tightly into the vent when the dryer is off. The ball opens it up elegantly when you switch on your dryer and air starts to flow outwards. All in all, it’s a great solution to one of the unique challenges of creating a dryer vent system that actually works. My only complaint is a minor one. The styrofoam ball sometimes makes a faint rattling sound when the dryer is ON. No big deal, though. Click below for a video tour of Ecovent.

I hope you found this article useful. Please consider helping me cover the cost of producing and publishing this content. Click the “buy me a coffee” button below and you’ll have a fast, safe and simple way to make a contribution. Thanks very much to everyone who continues to help out.

– Steve Maxwell
