There’s more to optimal control of heating systems than just a thermostat that turns indoor heat ON when it’s too cold, and OFF when temperatures rise. Today’s smartest hydronic heating controls serve this purpose in a way that delivers greater comfort while using less energy in the process. I know because I’ve installed systems like these and I’m particularly impressed with the results.
- Reading time = 8 minutes
- Video watch time = 12 1/2 minutes
Hot water radiators and radiant infloor heating systems are growing in popularity because they deliver more comfortable heat with less noise and airborne dust movement than forced-air systems. The main drawback with hot water heating is the tendency to over-shoot thermostat settings, making rooms too hot. By the time an ordinary thermostat senses that room temperature has risen to the set point, there’s still significant thermal energy stored in the hot water that’s in the floor pipes or wall radiators.
While circulator pumps may have shut off, there’s still plenty of residual heat entering the room as the hot water cools off, making room temperatures higher than necessary. Then there’s also the problem of lag times. It can take longer for hydronic heating systems to bring rooms up to set point temperatures because of the high thermal mass of water. Smart hydronic control systems use three sophisticated features to smooth out room temperatures, but without complication to homeowners. The results are simple and pleasant to live with. Smart controls can also save as much as 30% in heating costs compared with traditional thermostats used for radiant hydronic heating systems. In fact, without smart controls, many of today’s most efficient condensing boilers can’t live up to their full efficiency potentials.
Smart Thermostats: A Real-World Example
When it comes to home technology, my preference is always for simplicity. That’s why I was reluctant to have anything to do with smart heating controls at first. What convinced me to go against my instincts and try an installation were the recurring recommendations that I kept hearing from professional installers and homeowners with smart systems in place. In the end I installed a Canadian system by a west coast company called Tekmar Control Systems (www.tekmarcontrols.com; 250-545-7749). I now see how my initial reluctance was misplaced, and that good engineering makes even complex systems appear quite simple from a users point of view.
Smart Thermostats: How They Work

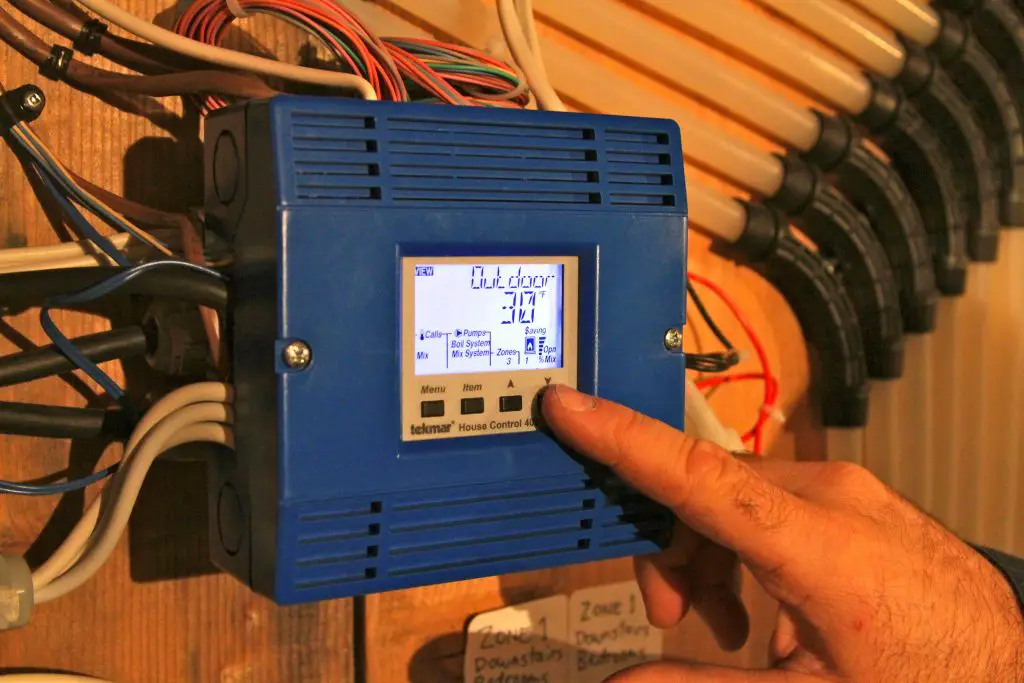

At its most basic level, smart controls harness two powerful ideas – outdoor temperature reset and indoor temperature feedback. Outdoor temperature reset gathers input from an outdoor temperature sensor like the one above to adjust the operating temperature of a boiler or the water flowing through a mixing valve. While traditional, simple boilers are activated by a thermostat to operate at full temperatures only, this leads to lower combustion efficiencies, greater energy losses from the distribution system and wider indoor temperature swings than ideal. By contrast, if an outdoor temperature reset system senses an outdoor temperature of, say, -3ºC or 27ºF, it triggers a boiler temperature to match. Not full blast output from the boiler, but rather just enough heat to get the job done a maximum efficiency. If the thermometer drops to -25ºC or -13ºF outside, the system knows it and dials in greater boiler output as required.
Understanding the Advantage
This dynamic is very much like what’s involved in responsibly driving your car. If you hammer the gas pedal every time a stop light turns green, blast along at full power all the time, then stand on the brakes hard to stop when the light turns red again, you’ll burn more fuel and wear out your vehicle faster than if you accelerated or decelerated smoothly and gently as conditions warrant. Standard thermostatic controls are like gas-guzzling, jack rabbit driving. Outdoor temperature reset capabilities, by contrast, allow variable heat output that’s similar to driving more sanely and responsibly. While some modern boilers come with outdoor temperature reset capabilities from the factory, this isn’t enough on its own. You also need controls with an additional technical feature called indoor temperature feedback. Think about the car driving example again.
Looking ahead is one of the best ways to save fuel and wear on your car. Anticipating road conditions you’ll encounter soon, then adjusting your speed, braking and acceleration accordingly makes sense. Coasting as you see a yellow light in the distance makes more sense than speeding along at the maximum limit, then slamming on the brakes when you’re at the red light just at the last minute. In the same way, giving your car some gas slowly when you can see that stopped traffic ahead of you will be moving by the time you get there saves time and money. Indoor temperature feedback is to hydronic heating control systems what responsible, mature and gentle driving habits are to motorists. The comparison is actually pretty close, and it matters more than you might realize.
Life With a Smart Thermostat

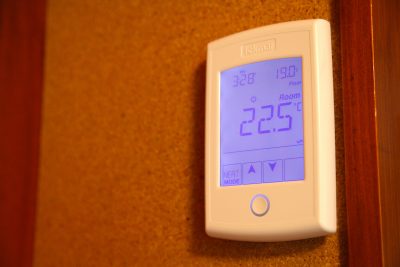

Living with smart hydronic heating controls is as easy as enjoying exceptionally smooth temperature levels in winter. But if you watch smart thermostats closely you’ll see the system actually learning how to make this happen in your particular home. For the first day or so after I powered up my smart heating controls for the first time, room temperature overshot the thermostat set point by 2º or 3ºC, as is often the case with conventional thermostats controlling hot water heating systems. Sometimes the overshoot is more than this. But after the smart system gathered information about how fast particular rooms heated up and cooled off given various outdoor air temperatures, surprising things began to happen. It wasn’t long before room temperatures became amazingly stable, regardless of outdoor conditions. It’s not unusual for temperatures to remain within a 0.5ºC or 1ºF range, even in the spring as outdoor temperatures rise significantly higher over the course of a few hours after sunrise.
When it comes to heating systems, condensing boilers have the ability to vary the heat they put out. This is like a car having an accelerator by design. Older boilers have no “accelerator” and are either OFF or running full blast. The ability that a boiler has to vary heat output ability does offer efficiency gains, but this is useless if that condensing boiler is only connected to a simple thermostat that just switches ON or OFF. Variable calls for heat are needed to make use of condensing boiler action. Many homeowners have been sold on condensing boilers with efficiency levels that promise to transform 96% of the chemical energy of natural gas or propane into heat. That’s great, but this is true only if that condensing boiler is hooked to a smart control system. Without that this same boiler will probably only hit real-world efficiencies in the mid-80% range. That’s probably not what most people have bargained for.
Smart Thermostats: Room-to-Room Communication

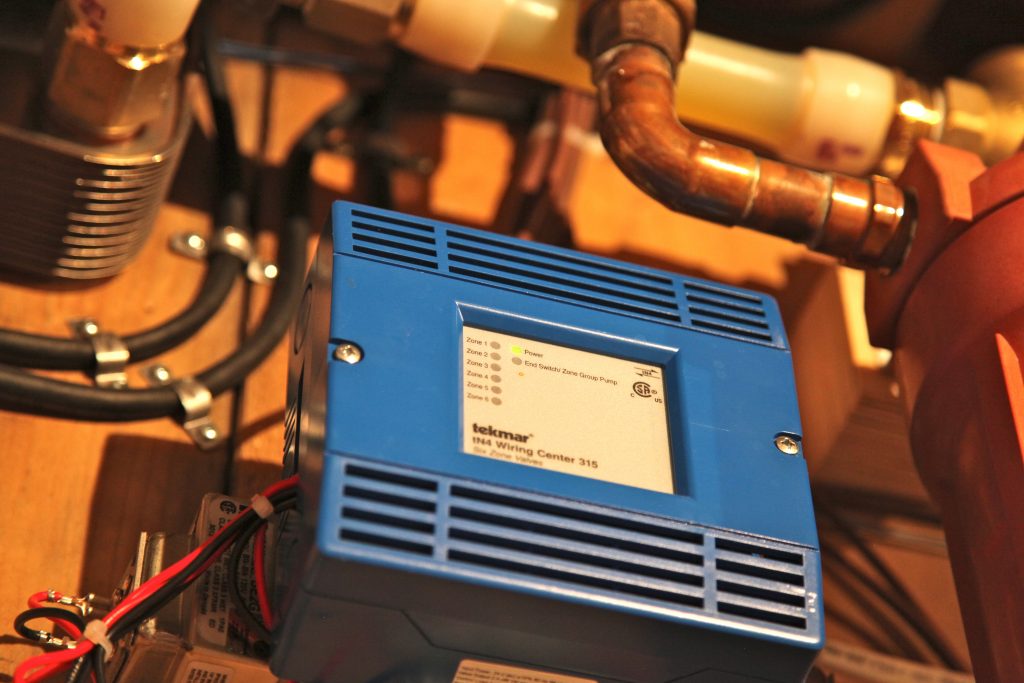

There’s one other thing that smart control systems do to lower heating costs. Thermostats from different rooms talk to each other as a network, balancing the various calls for heat depending on what the system has learned about how quickly rooms heat up and cool off, as well as the relative temperature of neighbouring rooms, and the various thermostat settings. By slightly delaying or advancing calls for heat to minimize the number of times a boiler comes on, greater efficiencies are gained.
It’s impressive to see how smart controls operate in the real world, and to think about the level of intelligence embodied in the circuit boards and algorithms of these systems. Just don’t get the mistaken impression that all this sophistication is for people obsessed with technology. It’s really for anyone who likes to save money and enjoy an exceptionally comfortable home. Isn’t that all of us?
Smart Pumps for Smart Thermostats
Circulator pumps are a necessary part of every hydronic heating system because all systems use moving hot water to transfer heat. What’s not so similar is the different kinds of pumps involved in making that water move. Most simply spin and move water, regardless of whether valves are open or water is allowed to move at all. It’s wasteful to have pumps trying to dead-head water against closed valves, and that’s one reason smart pumps have been developed. They use internal sensors to monitor the resistance to water flow, automatically adjusting pump output to match. The most sophisticated smart pump systems I’ve installed are the Grundfos Alpha line. They include three speed settings, plus settings to keep flow rate constant or head pressure constant – whatever you want. The bottom line is quieter, more elegant operation, plus very low electricity consumption. In tests I’ve run, smart pumps move 2 to 3 gallons per minute of water, with a power consumption of only 25 to 30 watts. Conventional circulator pumps often consume 500% more electricity for the same amount of water flow.
Hot Water Heating With a Water Heater
You don’t necessarily need a boiler to operate a hot water heating system. The right kind of gas or propane water heater can do an excellent job, while also producing domestic hot water. Click below for a video tutorial on the process.
